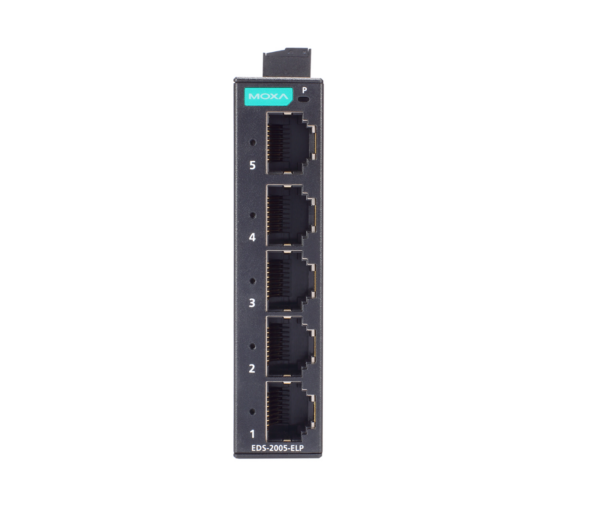

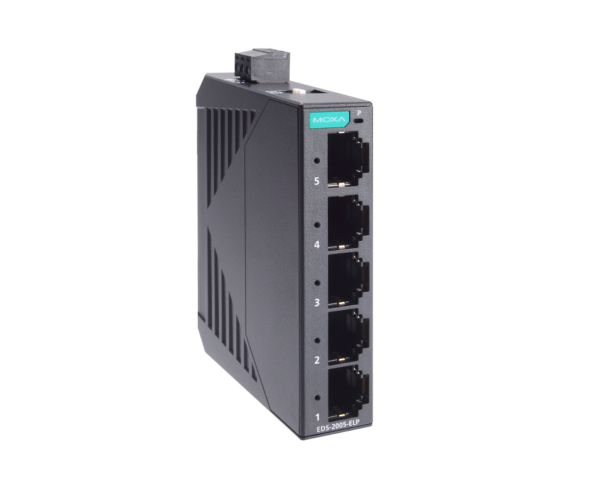

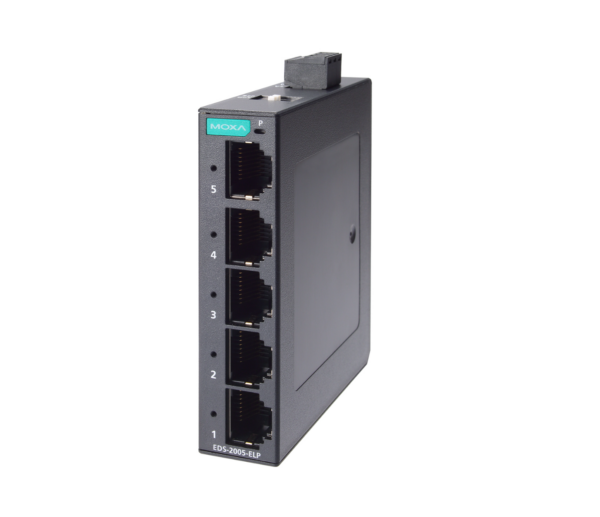

1PC NEW MOXA EDS-2005-ELP Ethernet Switches

Description

The EDS-2005-ELP series of industrial Ethernet switches have five 10/100M copper ports and a plastic housing, which are ideal for applications that require simple industrial Ethernet connections. Moreover, to provide greater versatility for use with applications from different industries, the EDS-2005-ELP Series also allows users to enable or disable the Quality of Service (QoS) function, and broadcast storm protection (BSP) with DIP switches on the outer panel.

The EDS-2005-ELP Series has a 12/24/48 VDC single power input, DIN-rail mounting, and high-level EMI/EMC capabilities. In addition to its compact size, the EDS-2005-ELP Series has passed a 100% burn-in test to ensure it will function reliably after it has been deployed. The EDS2005-EL Series has a standard operating temperature range of -10 to 60°C.

The EDS-2005-ELP Series is also compliant with PROFINET Conformance Class A (CC-A), making these switches suitable for PROFINET networks.
